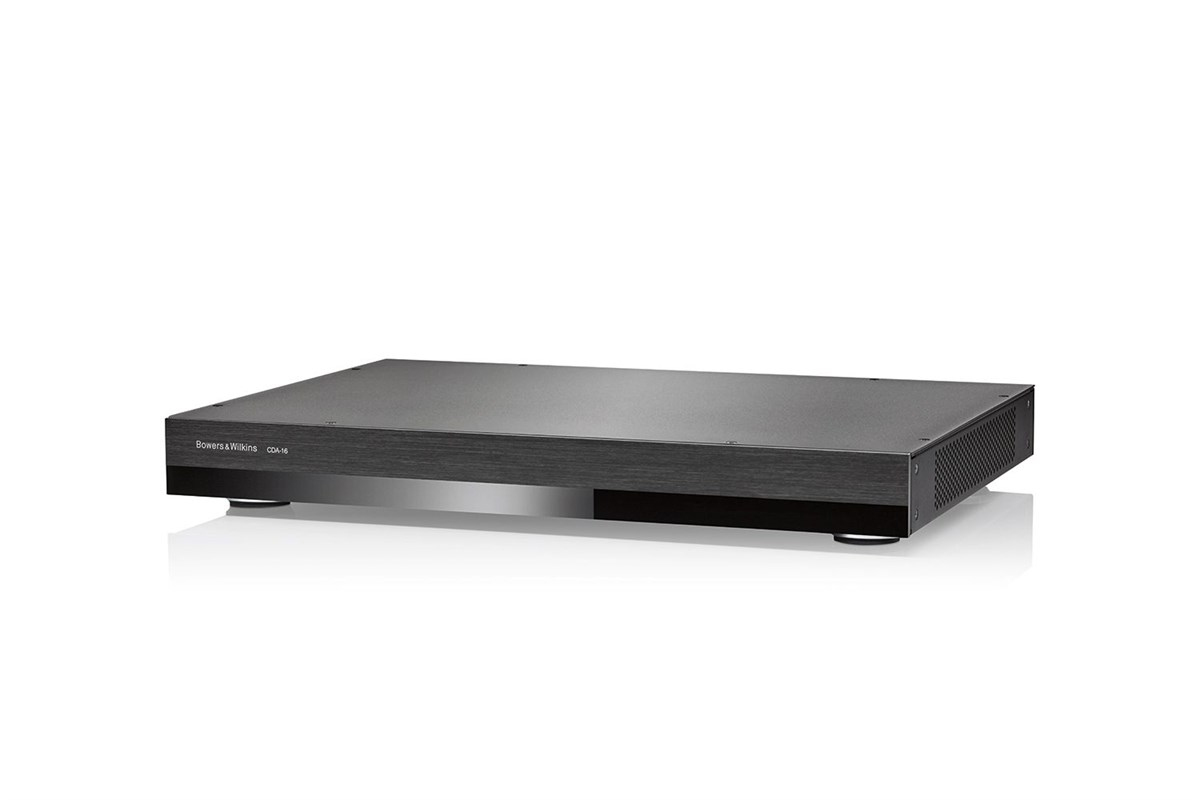

AUDIO SPECIFICATIONS
|
|
|
|
Load impedance range:
|
>3Ω per channel (>6Ω in bridge mode)
|
|
|
Output Power per channel, non-clipped:
|
>50W into 8Ω
>100W into 4Ω
|
|
|
Output Power bridge mode, non-clipped:
|
>200W into 8Ω
|
|
|
Output Power total, all channels:
|
>400W short term
>200W continuous average
|
|
|
DC offset voltage:
|
<50mV
|
|
|
Frequency Response (-3dB):
|
<10Hz to >50kHz, any load impedance
|
|
|
Frequency response accuracy 20Hz-20kHz:
|
±0.5dB
|
|
|
Signal to Noise ratio (Ref. 50W/8Ω):
|
>100dB A-Weighted
|
|
|
THD+N (1kHz, 12.5W, 4Ω):
|
typically 0.05%
|
|
|
Voltage Gain:
|
34.9dB to - infinity, adjustable
|
|
|
Input impedance:
|
15KΩ
|
|
|
Maximum input voltage:
|
6.8V peak (4.8V rms sine wave)
|
|
|
Signal sense threshold:
|
2.5mV (independent of Gain setting)
|
|
|
Wake-up time:
|
<0.2s (If other zones active)
<2s (From all zones inactive)
|
|
|
Turn-off time:
|
15 minutes from last signal detected
|
|
|
12V trigger input threshold:
|
typically 3V (recommended input is 5-15V)
|
|
|
CONTROLS & INDICATORS
|
|
|
|
Front panel:
|
1 x Power LED (unit active – White, Fault – Red)
8 x Zone status LEDs (Signal present – White, Fault – Red)
|
|
|
Rear panel:
|
8 x 2-position DIP switches (link to global input)
1 x 3-position switch (power mode: on, auto detect, 12V trigger)
8 x input gain control with Clip indicator LEDs
|
|
|
CONNECTORS
|
|
|
|
Input
|
8 x RCA (pair) Phono socket, line in (global in shared with Zone 8)
|
|
|
Output
|
1 x RCA (pair) Phono socket (global out)
8 x 5.08mm Pitch 4-way Phoenix Combicon style
|
|
|
12V trigger control
|
1 x 3.5 mm jack - 12V trigger IN
1 x 3.5 mm jack - 12V trigger OUT (Maximum 100mA pass-through)
|
|
|
POWER
|
|
|
|
Power consumption:
|
<0.5W All zones inactive
<45W All zones idling
300W maximum average
1,000W peak
|
|
|
AC supply:
|
100-240V 50/60Hz
|
|
|
AC inlet:
|
IEC C14, switched
|
|
|
THERMAL
|
|
|
|
Thermal dissipation
|
1.7 BTU/hr (standby),
150 BTU/hr (Idle),
400 BTU/hr (max)
|
|
|
DIMENSIONS
|
|
|
|
Height x Width x Depth
|
44.5 mm (1.8in) 1U [55.5 mm (2.2in) plus feet] x 437 mm (17.2in) x 310 mm (12.2in)
|
|
|
Net weight:
|
4.5kg (9.9lb)
|
|
|
Finish
|
|
|
